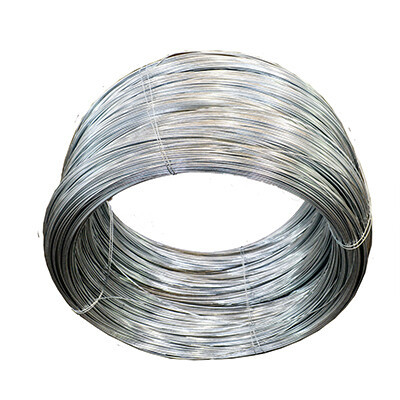

Zinc Coated Steel Wire

Popular Recommend Hot Dipped Galvanized Steel Wire Rope

PRODUCT PARAMETERS

Galvanized Steel Wire Stand ASTM-A475
Galvanized Steel Wire Stand ASTM-A475
Number of Wires/Dia.	Approx.Strand Dia.		Siemem Martin Grade	High Strength Grade	Extra-high Strength Grade	Approx.Weight
Number of Wires/Dia.	Approx.Strand Dia.		Siemem Martin Grade	High Strength Grade	Extra-high Strength Grade	Approx.Weight
	Inch	mm	KN	KN	KN	kg/km
3/2.64	7/32	5.56	10.409	15.569	21.796	131
3/3.05	1/4	6.35	13.523	21.04	29.981	174
3/3.05	1/4	6.35	-	-	-	174
3/3.30	9/32	7.14	15.035	23.398	33.362	204
3/3.68	5/16	7.94	18.193	28.246	40.479	256
3/4.19	3/8	9.52	24.732	37.187	52.489	328
7/1.04	1/8	3.18	4.048	5.916	8.18	49
7/1.32	5/32	3.97	6.539	9.519	13.078	76
7/1.57	3/16	4.76	8.452	12.677	17.748	108
7/1.65	3/16	4.76	-	-	-	118
7/1.83	3/16	5.56	11.387	17.126	24.02	145
7/2.03	7/32	6.35	14.012	21.129	29.581	181
7/2.36	1/4	7.14	18.905	28.469	39.812	243
7/2.64	9/32	7.94	23.798	35.586	49.82	305
7/2.77	5/16	7.94	-	-	-	335
7/3.05	3/8	9.52	30.915	48.04	68.503	407
7/3.68	7/16	11.11	41.591	64.499	92.523	594
7/4.19	1/2	12.7	53.823	83.627	119.657	768
7/4.78	9/16	14.29	69.837	108.981	155.688	991
7/5.26	5/8	15.88	84.961	131.667	188.605	1211
19/2.54	1/2	12.7	56.492	84.961	118.768	751
19/2.87	9/16	12.49	71.616	107.202	149.905	948
19/3.18	5/8	15.88	80.513	124.995	178.819	1184
19/3.81	3/4	19.05	116.543	181.487	259.331	1719
19/4.50	7/8	22.22	159.691	248.211	354.523	2352
19/5.08	1	25.4	209.066	325.61	464.839	2384
37/3.63	1	25.4	205.508	319.827	456.832	3061
37/4.09	11/8	28.58	262	407.457	581.827	4006
37/4.55	11/4	31.75	324.72	505.318	721.502	4833

Galvanized Steel Wire Strand BS 183 : 1972
Galvanized Steel Wire Strand BS 183 : 1972
Number of wires/Dia.	Approx.Strand Dia.	Minimum Breaking Load of Strand							Approx. Weight
Number of wires/Dia.	Approx.Strand Dia.	Grade 350	Grade 480	Grade 700	Grade 850	Grade 1000	Grade 1150	Grade 1300	Approx. Weight
	mm	kN	kN	kN	kN	kN	kN	kN	kg/km
3/1.80	3.9	2.65	3.66	-	-	-	-	-	60
3/2.65	5.7	5.80	7.95	-	-	-	-	-	130
3/3.25	7	8.70	11.95	-	-	-	-	-	195
3/4.00	8.6	13.20	18.10	-	-	-	-	-	295
4/1.80	4.4	3.55	4.90	-	-	-	-	-	80
4/2.65	6.4	7.70	10.60	-	-	-	-	-	172
4/3.25	7.9	11.60	15.90	-	-	-	-	-	260
4/4.00	9.7	17.60	24.10	35.20	-	-	-	-	390
5/1.50	4.1	3.10	4.24	6.18	-	-	-	-	69
5/1.80	4.9	4.45	6.10	8.90	-	-	-	-	95
5/2.65	7.2	9.65	13.25	19.30	-	-	-	-	220
5/3.25	8.8	14.50	19.90	29.00	-	-	-	-	320
5/4.00	10.8	22.00	30.15	43.95	-	-	-	-	490
7/0.56	1.7	0.60	0.83	1.20	-	1.70	1.98	2.24	14
7/0.71	2.1	0.97	1.33	1.94	-	2.75	3.19	3.60	28
7/0.85	2.6	1.39	1.90	2.80	-	3.95	4.57	5.15	31
7/0.90	2.7	1.55	2.14	3..1	-	4.45	5.12	5.80	35
7/1.00	3	1.92	2.64	3.85	-	5.50	6.32	7.15	43
7/1.25	3.8	3.01	4.10	6.00	-	8.55	9.88	11.15	67
7/1.40	4.2	3.75	5.17	7.54	9.16	10.75	12.35	14.00	84
7/1.60	4.8	4.90	6.75	9.85	11.95	14.10	16.20	18.30	110
7/1.80	5.4	6.23	8.55	12.45	-	17.80	20.50	23.20	140
7/2.00	6.0	7.70	10.55	15.40	-	22.00	25.30	28.60	170
7/2.36	7.1	10.70	14.70	21.40	-	30.60	35.20	39.80	240
7/2.65	8.0	13.50	18.50	27.00	-	38.60	44.40	50.20	300
7/3.00	9.0	17.30	23.75	34.65	-	49.50	56.90	64.30	392
7/3.15	9.5	19.10	26.20	38.20	-	54.55	62.75	70.90	430
7/3.25	9.8	20.30	27.85	40.65	-	58.05	66.80	75.50	460
7/3.65	11.0	25.60	35.15	51.25	-	73.25	84.20	95.20	570
7/4.00	12.0	30.90	42.20	61.60	-	88.00	101.00	114.00	690
7/4.25	12.8	34.75	47.65	69.50	-	99.30	114.00	129.00	780
7/4.75	14.0	43.40	59.45	86.80	-	124.00	142.70	161.30	970
19/1.00	5.0	5.22	7.16	10.45	-	14.92	17.16	19.40	120
19/1.25	6.3	8.16	11.19	16.32	-	23.32	26.81	30.31	180
19/1.40	7.0	10.24	14.04	20.47	-	29.25	33.64	38.02	230
19/1.60	8.0	13.37	18.35	26.75	-	38.20	43.93	49.66	300
19/2.00	10.0	20.90	28.65	41.78	50.74	59.69	68.64	77.60	470
19/2.50	12.5	32.65	44.80	65.29	79.28	93.27	107.30	121.30	730
19/3.00	15.0	47.00	64.50	94.00	114.10	134.30	154.50	174.60	1050
19/3.55	17.8	65.80	90.27	131.60	159.90	188.00	216.30	244.50	1470
19/4.00	20.0	83.55	114.60	167.10	203.00	238.70	274.60	310.40	1870
19/4.75	23.8	117.85	161.40	235.70	286.00	336.70	387.20	437.70	2630

Galvanized Steel Wire Strand For Optical Fiber Cable
Con.	Dia. mm	Dia. strand mm	cross-section mm2	Tensile strength, (Mpa )					Zinc Coating Mass No Less Than (g/m2)	weight kg/km
				1370	1470	1570	1670	1770
				Minmium breaking force(KN)
1*7	0.33	1.00	0.60					0.80	5	4.9
	0.40	1.20	0.88					1.0	5	7.1
	0.60	1.80	1.98				2.80		5	16.0
	0.80	2.40	3.52				3.04		10	28.5
	0.90	2.70	4.45			6.43			10	36.0
	1.00	3.00	5.50		7.99				20	44.5
	1.20	3.60	7.92		10.71				20	64.0
	1.40	4.20	10.78		14.58				20	87.2
	1.60	4.80	14.07	17.73					20	113.8
	1.80	5.40	17.87	22.45					20	144.0
	2.00	6.00	21.99	27.72					20	177.8

Technical Data

Intensity level	Wirediameter	Min. tensile strength	Min. stress with 1% extension	Min. extension percentage when L=250	Min. No. of 3600 twist
	mm	Mpa	Mpa	%
General	1.24~2.25	1340	1170	3.0	16
	2.25~2.75	1310	1140	3.0	16
	2.75~3.00	1310	1140	3.5	16
	3.00~3.50	1290	1100	3.5	14
	3.50~4.25	1290	1100	4.0	12
	4.25~4.75	1290	1100	4.0	12
	4.75~5.50	1290	1100	4.0	12
High	1.24~2.25	1450	1310	2.5	16
	2.25~2.75	1410	1280	2.5	16
	2.75~3.00	1410	1280	3.0	16
	3.00~3.50	1410	1240	3.0	14
	3.50~4.25	1380	1170	3.0	12
	4.25~4.75	1380	1170	3.0	12
	4.75~5.50	1380	1170	3.0	12
Very high	1.24~2.25	1620	1450	2.0	14
	2.25~2.75	1590	1410	2.0	14
	2.75~3.00	1590	1410	2.5	12
	3.00~3.50	1550	1380	2.5	12
	3.50~4.25	1520	1340	2.5	10
	4.25~4.75	1520	1340	2.5	10
	4.75~5.50	1520	1270	2.5	10

PRODUCT APPLICATION

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

PRODUCT PACKAGING

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.

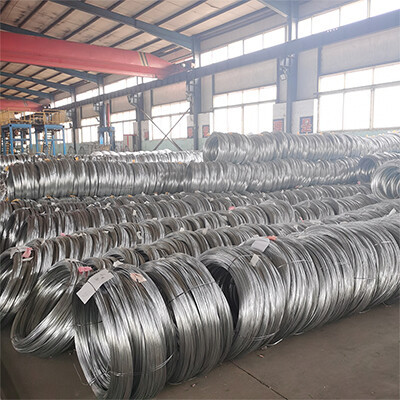

FACTORY DISPLAY
