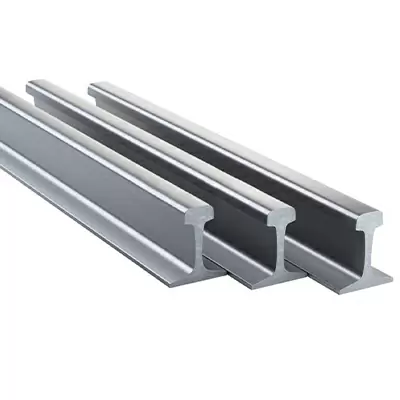

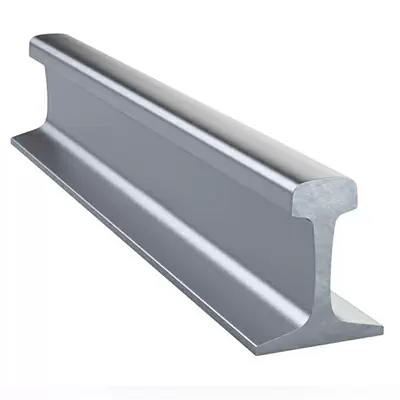

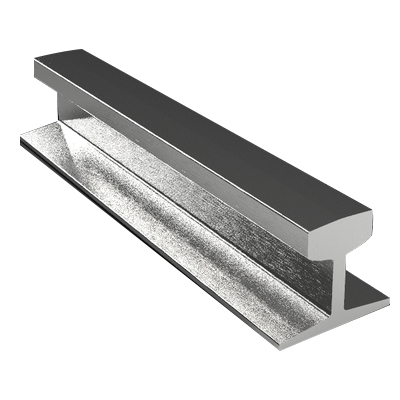

Steel Rail 55Q、U50MN、U71MN

UIC860-O UIC60 rail is widely used for state railway line of English countries, we can produce it by order, the MOQ should more than 500 tons, hardness can be R260/320HBW/350HT, length 12 to 30 meters, our products can accept any third-party inspection.

PRODUCT PARAMETERS

Rail
Product name:	Grooved Rail and Special Rail Hot rolled steel
Place of Origin:	Shandong, China
Rail Heigth:	63.0-170mm
Standard:	AiSi, ASTM, bs, DIN, GB, JIS
Head Width:	25-120mm
Grade:	Q235/55Q/U71Mn/75V/50Mn/45Mn
Application:	Railway Rail
Length:	5-18M
Rail Heigth:	63.0-170mm
Invoicing:	by actual weight
Delivery Time:	8-14 days
Technique:	Hot Rolled/Cold Rolled rail
Port:	Tianjin
Packaging Details	in bundles, in bulk, customized packing.

1. Chinese Standard Heavy Rail【Standard GB2585-2007: P38KG, P43KG, P50KG, P60KG】-Specifications
Standard: GB2585-2007
Size	Dimension(mm)				Weight	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length (m)
P38KG	68	134	114	13	38.733	U71Mn	12.5-25
P43KG	70	140	114	14.5	44.653	U71Mn	12.5-25
P50KG	70	152	132	15.5	51.514	U71Mn	12.5-25
P60KG	73	170	150	16.5	61.64	U71Mn	12.5-25
2. Chinese Standard Light Rail【Standard GB11264-89: GB6KG, GB9KG, GB12KG, GB15KG, GB22KG, GB30KG】-Standard YB222-63: 8KG, 18KG, 24KG
Specifications：Standard: GB11264-89
Size	Dimension(mm)				Weight	Material	Length(m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length(m)
GB6KG	25.4	50.8	50.8	4.76	5.98	Q235B	6月12日
GB9KG	32.1	63.5	63.5	5.9	8.94	Q235B	6月12日
GB12KG	38.1	69.85	69.85	7.54	12.2	Q235B/55Q	6月12日
GB15KG	42.86	79.37	79.37	8.33	15.2	Q235B/55Q	6月12日
GB22KG	50.3	93.66	93.66	10.72	23.3	Q235B/55Q	6月12日
GB30KG	60.33	107.95	107.95	12.3	30.1	Q235B/55Q	6月12日
Standard: YB222-63
8KG	25	65	54	7	8.42	Q235B	6月12日
18KG	40	90	80	10	18.06	Q235B/55Q	6月12日
24KG	51	107	92	10.9	24.46	Q235B/55Q	6月12日

3. Chinese Standard Crane Rail【Standard YB/T5055-93: QU70, QU80, QU100, QU120】-Specifications
Standard: YB/T5055-93
Size	Dimension(mm)				Weight	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length (m)
QU 70	70	120	120	28	52.8	U71Mn	12
QU 80	80	130	130	32	63.69	U71Mn	12
QU 100	100	150	150	38	88.96	U71Mn	12
QU 120	120	170	170	44	118.1	U71Mn	12

4. BS Standard Steel Rail【Standard BS11: 1985: 50O, 60A, 75A, 75R, 80A, 80R, 90A, 100A, 113A】-Specifications
Standard: BS11: 1985
Size	Dimension(mm)				Weight	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length (m)
50 O	52.39	100.01	100.01	10.32	24.833	700	6月18日
60 A	57.15	114.3	109.54	11.11	30.618	900A	6月18日
75 A	61.91	128.59	114.3	12.7	37.455	900A	8月25日
75 R	61.91	128.59	122.24	13.1	37.041	900A	8月25日
80 A	63.5	133.35	117.47	13.1	39.761	900A	8月25日
80 R	63.5	133.35	127	13.49	39.674	900A	8月25日
90 A	66.67	142.88	127	13.89	45.099	900A	8月25日
100 A	69.85	152.4	133.35	15.08	50.182	900A	8月25日
113 A	69.85	158.75	139.7	20	56.398	900A	8月25日
5. DIN Standard Steel Rail【Standard EN 13674-1-2003: A55, A65, A75, A100, A120】-Specifications
Standard: DIN536
Size	Dimension(mm)				Weight	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length (m)
A55	55	65	150	31	31.8	900A	10月12日
A65	65	75	175	38	43.1	900A	10月12日
A75	75	85	200	45	56.2	900A	10月12日
A100	100	95	200	60	74.3	900A	10月12日
A120	120	105	220	72	100	900A	10月12日

PRODUCT APPLICATION

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

PRODUCT PACKAGING

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.

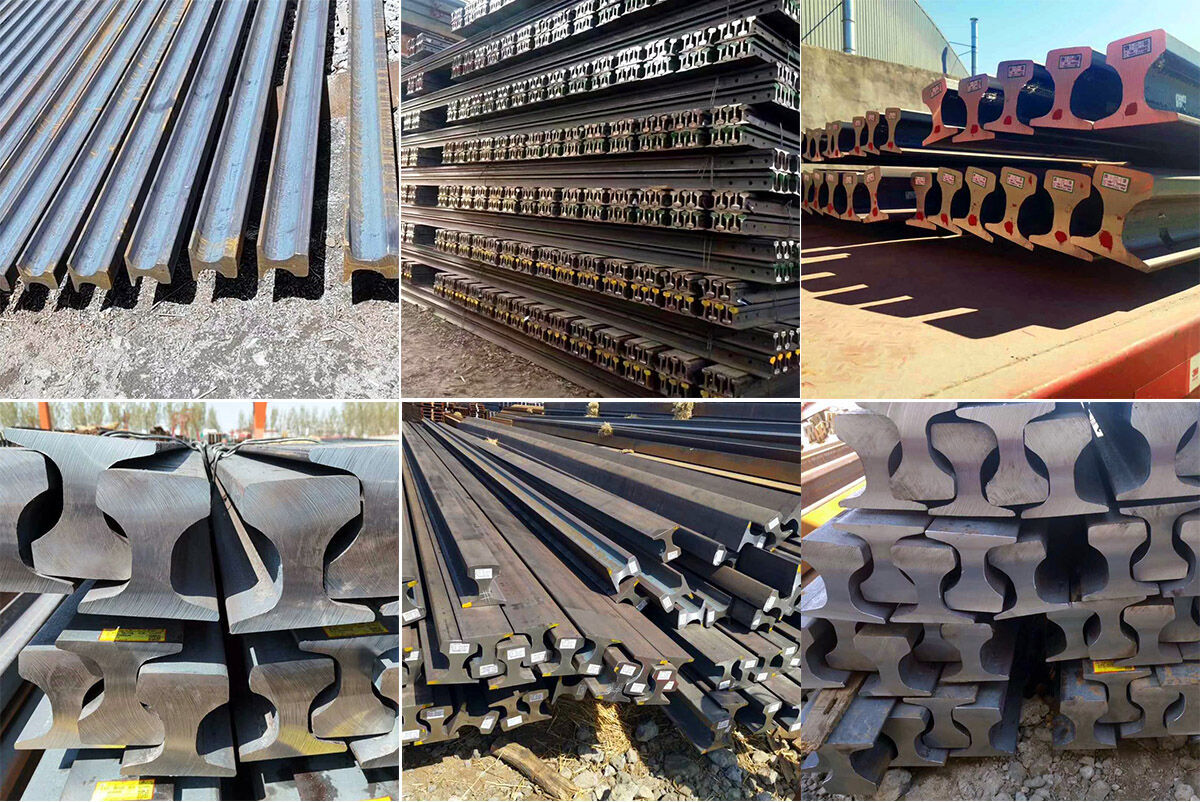

FACTORY DISPLAY
