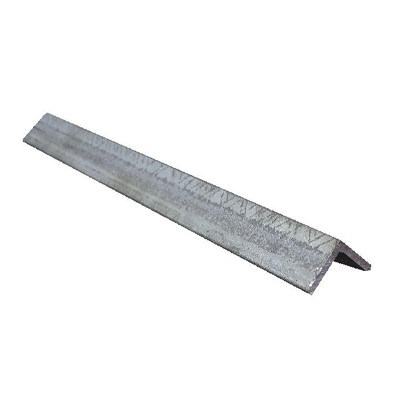

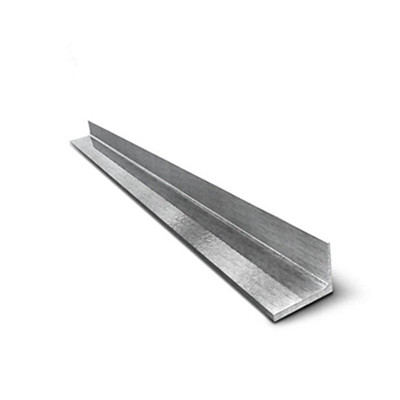

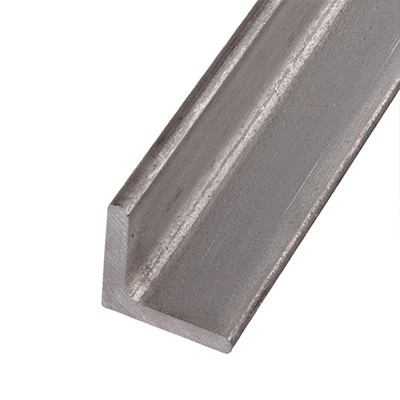

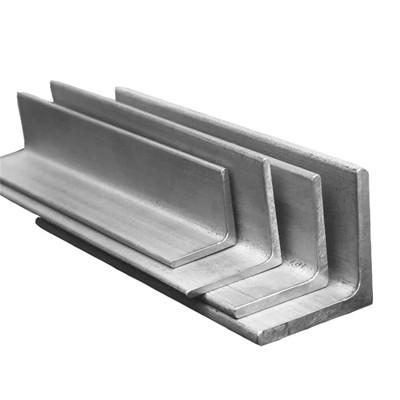

Equal Angle A36、A572Gr50、A572GR60

A36、St37、St52，16Mn，S235J0、S235J2，S235JR，S355JR，S355，S355J0SS440，SM400A，SM400BQ195,Q235B,Q355B；A572,GR50,GR60,SS540H100*100-H400*400H150*75 -H900*300；ASTM A36;ASTM A6(W);
ASTM A6(S);JIS 3192;JIS 3136;EN10034;EN10163;EN10025-2;AS/NZS3679.1;

PRODUCT PARAMETERS

Product advantage：

1. Environmental protection: It can effectively reduce environmental pollution.

2. Corrosion resistance: stain resistance, acid resistance, corrosion resistance, wear resistance, no radioactivity.

3. Surface cleaning: the surface of the product is smooth and compact, not easy to be polluted by dust, with good self-cleaning.

4. Easy maintenance: Easy to repair minor damage.

Product Name	Angle Steel
Shape	Equal
Standard	AISI, ASTM, BS, DIN, GB, JIS
Grade	SS400/ST37-2/ST52/Q420/Q460/S235JR/S275JR/S355JR
Specification	2020-200200mm
Thickness	6-35mm
Length	6m, 9m, 12m or as customized
Surface treatment	Hot Dip Gavalnized / Black / Painted
Zinc coating	30-90um
Packing	In bundles
Delivery Time	10~20days
Payment Terms	L/C , T/T or Western Union

Type	size		weight（kg/m）	Type	size		weight（kg/m）	type	size			weight（kg/m）	type	size			weight（kg/m）
Type	b	d	weight（kg/m）	Type	b	d	weight（kg/m）	type	B	b	d	weight（kg/m）	type	B	b	d	weight（kg/m）
2	20	3	0.889	2.5	25	3	1.124	2.5/1.6	25	16	3	0.912	11/7.0	110	70	6	8.35
2	20	4	1.145	2.5	25	4	1.459	2.5/1.6	25	16	4	1.176				7	9.656
3	30	3	1.373	9	90	6	8.35	3.2/2	32	20	3	1.171				8	10.946
3	30	4	1.786			7	9.656	3.2/2	32	20	4	1.522				10	13.476
3.6	36	3	1.656			8	10.946	4/2.5	40	25	3	1.484	12.5/8	125	80	7	11.066
		4	2.163			10	13.476	4/2.5	40	25	4	1.936				8	12.551
		5	2.654			12	15.94	4.5/28/3.0	45	28	3	1.687				10	15.474
4	40	2.5	2.306	10	100	6	9.366			30	4	2.203				12	18.333
		3	1.852			7	10.83			30	5	2.251	14/9.0	140	90	8	14.16
		4	2.422			8	12.276	5/3.2	50	32	3	1.908				10	17.475
		5	2.976			10	15.12	5/3.2	50	32	4	2.494				12	20.724
4.5	45	3	2.088			12	17.898	5.6/3.6	56	36	3	2.153				14	23.908
		4	2.736			14	20611				4	2.818	16/10.0	160	100	10	19.872
		5	3.369			16	23.257				5	3.466				12	23.592
		6	3.985	11	110	7	11.928	6.3/4	63	40	4	3.185				14	27.247
5	50	3	2.332			8	13.532				5	3.92				16	30.838
		4	3.059			10	16.69				6	4.638	18/11.0	180	110	10	22.273
		5	3.770			12	19.782				7	5.339				12	26.464
		6	4.456			14	22.809	7/4.5	70	45	4	3.57				14	30.589
5.6	56	3		12.5	125	8	15.504				5	4.403				16	34.649
		4	0.889			10	19.133				6	5.218	20/12.5	200	125	12	29.761
		5	1.145			12	22.696				7	6.011				14	34.436
		6				14	26.193	7.5/5	75	50	5	4.808				16	39.045
6.3	63	4	3.907	14	140	10	21.488				6	5.699				18	43.588
		5	4.822			12	25.522				8	7.431
		6	5.721			14	29.49				10	9.098
		8	7.469			16	33.393	8.0/5	80	50	5	5.005
		10	9.151	16	160	10	24.729				6	5.935
7	70	4	4.372			12	29.391				7	6.848
		5	5.697			14	33.987				8	7.745
		6	6.406			16	38.518	9/5.6	90	56	5	5.661
		7	7.398	18	180	12	33.159				6	6.717
		8	8.373			14	38.383				7	7.756
7.5	75	5	5.818			16	43.542				8	8.779
		6	6.905			18	48.634	10/6.3	100	63	6	7.55
		7	7.976	20	200	14	42.894				7	8.722
		8	9.03			16	48.68				8	9.878
		10	11.089			18	54.401				10	12.142
8	80	5	6.211			20	60.056	10/8.0	100	80	6	8.35
		6	7.376			24	71.168				7	9.656
		7	8.526								8	10.946
		8	9.658								10	13.476
		10	11.874

PRODUCT APPLICATION

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

PRODUCT PACKAGING

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.
