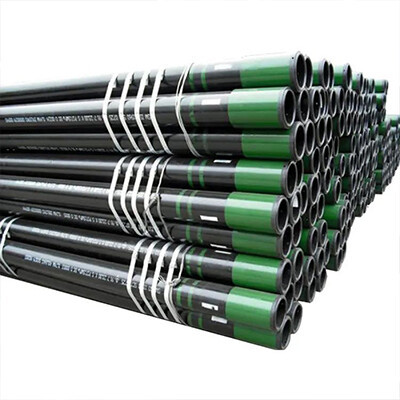

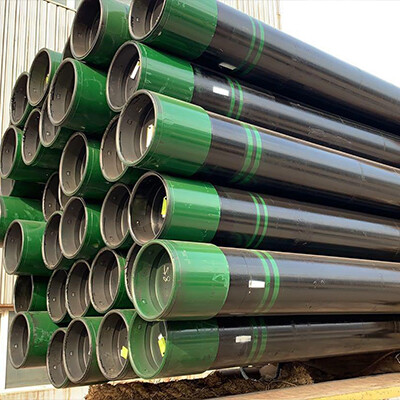

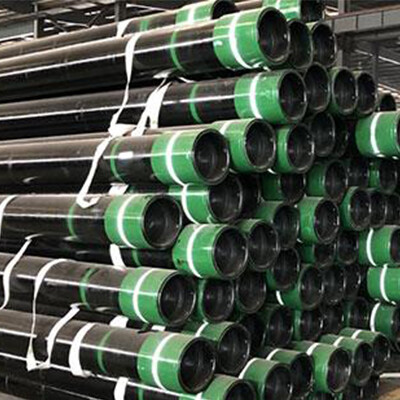

API 5CT Casing
API 5CT is standard technical specifications for steel casing pipes used for oil wells in petroleum and natural gas industries.
Contact Us

PRODUCT PARAMETERS

·  Keywords: API 5CT Casing, Well Casing, Seamless (SMLS), Electric Resistance Welded (ERW), Casing, Oil Pipe

·  Size: OD: 4 1/2’’ ~ 20’’ (114.3mm ~ 508mm)；WT: 0.205’’ ~ 0.635’’ (5.21mm ~ 16.13mm)；LENGTH: R1, R2, R3

·  Standard & Grade: API 5CT J 55/K55/N80/C75/L80/C90/T95/Q125

·  Ends: Beveled, Square Cut, With LTC/STC/BTC/VAM Connection

·  Packing: Protection Caps in Both Ends, Waterproof Paper Wrapped, Two Tags

·  Usage: Used as the Structural Retainer for the Walls of Oil, Gas Wells

·  Thread types: STC, LTC, BTC, Special Clearance, Premium Connection

·  Application: Oil Well Casing Serves As Well Sidewall



Casing is a large-diameter pipe that serves as the structural retainer for the walls of oil and gas wells, or well bore.It is inserted into a well bore and cemented in place to protect both subsurface formations and the well bore from collapsing and to allow drilling fluid to circulate and extraction to take place. Steel Casing Pipes have smooth wall & minimum yield strength of 35,000 psi.

Well Casing serves as well sidewall. Standards and Technical Conditions for Supply:API Spec 5CT ISO13680 Grade: J55, K55, N80-1,N80-Q, L80-1, L80-9Cr,L80-13Cr,C95, P110. Tread types: NUE, EUE, VAM, STC, LTC, BTC, special clearance, XC,VAM TOP,NEW VAM.

Oil Casing Pipe: Casings are used for fixing the well wall or down hole, which have wide diameters, can be divided into conductor casings, technical casings and Oil casings.

Uses: Well Casing serves as well sidewall.

Standards and Technical Conditions for Supply: API Spec 5CT

Grade of pipe casing: J55, K55, N80-1,N80-Q, L80-1, L80-9Cr,L80-13Cr,C95, P110.

Tread types of pipe casing : STC, LTC, BTC, special clearance, XC,VAM TOP,NEW VAM.

Dimension: OD: 114.3-508mm WT: 5.21-16.13mm



What is API 5CT casing ?

API SPEC 5CT well casing is utilized in fixing the well wall or down hole, which has wider diameters. API SPEC 5CT can be divided into conductor casing, technical casing and oil casing.



API 5CT is standard technical specifications for steel casing pipes used for oil wells in petroleum and natural gas industries.



Common Grades

• J55/K55

• N80/N80Q/L80

• C90

• R95/T95

• P110/C110

• Q125

Lengths:

 Oil CasingRange 1Range 2Range 3
4.88~7.627.62~10.3610.36~14.63

Dimension:

LabelsOutside diameter  DNominal linear mass T&CWall thickness tJ55N80L80C90P110Q125
mmkg/mmmK551/Q?T95
1234567891011
4 1/29.5114.314.145.21PS-----
4 1/210.5114.315.635.69PSB-----
4 1/211.6114.317.266.35PSLBPLBPLBPLBPLB-
4 1/213.5114.320.097.37-PLBPLBPLBPLB-
4 1/215.1114.322.478.56----PLBPLB
511.512717.115.59PS-----
51312719.356.43PSLB-----
51512722.327.52PSLBEPLBEPLBEPLBEPLBE-
51812726.799.19-PLBEPLBEPLBEPLBEPLBE
521.412731.8511.1-PLBPLBPLBPLBPLB
523.212734.5312.14-PLBPLBPLBPLBPLB
524.112735.8612.7-PLBPLBPLBPLBPLB
5 1/214139.720.836.2PS-----
5 1/215.5139.723.076.98PSLBE-----
5 1/217139.725.37.72PSLBEPLBEPLBEPLBEPLBE-
5 1/220139.729.769.17-PLBEPLBEPLBEPLBE-
5 1/223139.734.2310.54-PLBEPLBEPLBEPLBEPLBE
5 1/226.8139.739.8812.7---P--
5 1/229.7139.744.214.27---P--
5 1/232.6139.748.5115.88---P--
5 1/235.3139.752.5317.45---P--
5 1/238139.756.5519.05---P--
5 1/240.5139.760.2720.62---P--
5 1/243.1139.764.1422.22---P--
6 5/820168.2829.767.32PSLB-----
6 5/824168.2835.728.94PSLBEPLBEPLBEPLBEPLBE-
6 5/828168.2841.6710.59-PLBEPLBEPLBEPLBE-
6 5/832168.2847.6212.06-PLBEPLBEPLBEPLBEPLBE
717177.825.35.87------
720177.829.766.91PS-----
723177.834.238.05PSLBEPLBEPLBEPLBE--
726177.838.699.19PSLBEPLBEPLBEPLBEPLBE-
729177.843.1610.36-PLBEPLBEPLBEPLBE-
732177.847.6211.51-PLBEPLBEPLBEPLBE-
735177.852.0912.65-PLBEPLBEPLBEPLBEPLBE
738177.856.5513.72-PLBEPLBEPLBEPLBEPLBE
742.7177.863.5415.88---P--
746.4177.869.0517.45---P--
750177.874.5619.05---P--
753.6177.879.7720.62---P--
757.1177.884.9722.22---P--
7 5/824193.6835.727.62------
7 5/826.4193.6839.298.33PSLBEPLBEPLBEPLBE--
7 5/829.7193.6844.29.52-PLBEPLBEPLBEPLBE-
7 5/833.7193.6850.1510.92-PLBEPLBEPLBEPLBE-
7 5/839193.6858.0412.7-PLBEPLBEPLBEPLBEPLBE
7 5/842.8193.6863.6914.27-PLBPLBPLBPLBPLB
7 5/845.3193.6867.4115.11-PLBPLBPLBPLBPLB
7 5/847.1193.6870.0915.88-PLBPLBPLBPLBPLB
7 5/851193.6876.1917.45---P--
7 5/855.3193.6882.319.05---P--
8 5/824219.0835.726.71PS-----
8 5/828219.0841.677.72------
8 5/832219.0847.628.94PSLBE-----
8 5/836219.0853.5710.16PSLBEPLBEPLBEPLBE--
8 5/840219.0859.5311.43-PLBEPLBEPLBEPLBE-
8 5/844219.0865.4812.7-PLBEPLBEPLBEPLBE
8 5/849219.0872.9214.15-PLBEPLBEPLBEPLBEPLBE
9 5/832244.4848.077.92------
9 5/836244.4853.578.94PSLB-----
9 5/840244.4859.5310.03PSLBEPLBEPLBEPLBE--
9 5/843.5244.4864.7311.05-PLBEPLBEPLBEPLBE-
9 5/847244.4869.9411.99-PLBEPLBEPLBEPLBEPLBE
9 5/853.5244.4879.6213.84-PLBEPLBEPLBEPLBEPLBE
9 5/858.4244.4886.9115.11-PLBPLBPLBPLBPLB
9 5/859244.4888.415.47---P--
9 5/864.9244.4896.5817.07---P--
9 5/870.3244.48104.6218.64---P--
9 5/875.6244.48112.520.24---P--
10 3/432.75273.0548.747.09------
10 3/440.5273.0560.278.89PSB-----
10 3/445.5273.0567.7110.16PSBE-----
10 3/451273.0575.911.43PSBEPSBEPSBEPSBEPSBE-
10 3/455273.0582.5912.57-PSBEPSBEPSBEPSBE-
10 3/460.7273.0590.3313.84---PSBEPSBEPSBE
10 3/465.7273.0597.7715.11---PSBPSBPSB
10 3/473.2273.05108.9317.07---P--
10 3/479.2273.05117.8618.64--- P--
10 3/485.3273.05126.9420.24


 P

11 3/442298.4562.58.46 - - - - - -
11 3/447298.4569.949.53PSB - - - - -
11 3/454298.4580.3611.05PSB - - - - -
11 3/460298.4589.2912.42PSBPSBPSBPSBPSBPSB
11 3/465298.4596.7313.56 -PPPPP
11 3/471298.45105.6614.78 -PPPPP
13 3/848339.7271.438.38------
13 3/854.5339.7281.19.65PSB-----
13 3/861339.7290.7810.92PSB-----
13 3/868339.72101.1912.19PSBPSBPSBPSBPSB-
13 3/872339.72107.1513.06-PSBPSBPSBPSBPSB
1665406.496.739.53------
1675406.4111.6111.13PSB-----
1684406.4125.0112.57PSB-----
16109406.4162.2116.66PPP-PP
18 5/887.5473.08130.2111.05PSB-----
2094508139.8911.13PSLB-----
20106.5508158.4912.7PSLB-----
20133508197.9316.13PSLB-----
P——Plain end; S——Short round thread;L——Long round thread;B——Buttress thread;E——Extreme line.

PRODUCT APPLICATION

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

application scenarios
transportation

PRODUCT PACKAGING

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.
