Name: Carbon Steel Plate
SKU: 0

ZHONGSHI STEEL（SHANDONG） CO,.LTD

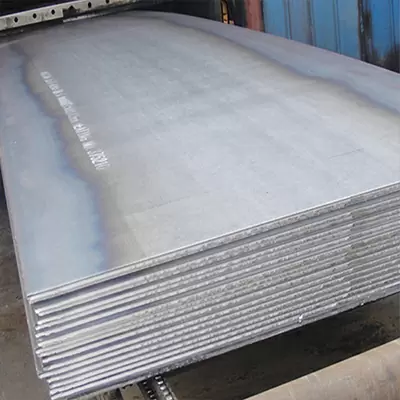

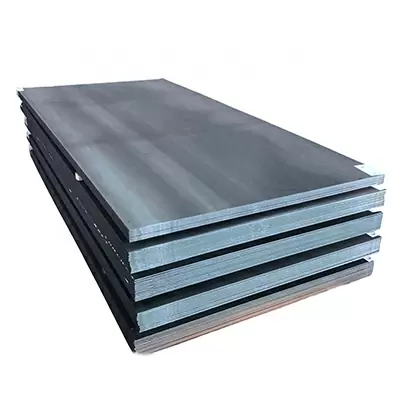

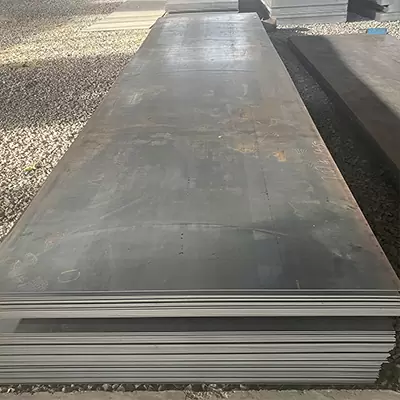

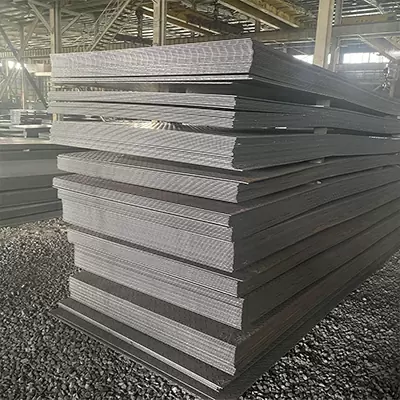

Carbon Steel Plate

Specifications: Thickness is 0.2-4mm, width is 600-2 000mm, and steel plate length is 1200-6 000mm.
Brands: Q195A-Q235A, Q195AF-Q235AF, Q295A (B) - Q345 A (B); SPCC, SPCD, SPCE, ST12-15; DC01-06

E-mail：admin@steel-cn.com

TEL：008613026578856

WhatsApp：008613026578856

Product Details

DETAILS

Grade	A36, SS400, Grade50, SPCC,SPCD,SPCE,st12,st13,st14,st15,st14-T
Process service	Slit cut, average into smaller coil and so on
Standard	JIS/SUS/GB/DIN/ASTM/AISI/EN
Technique	Cold Rolled; Hot Rolled
Thickness	0.5-3mm cold rolled; 3-16mm hot rolled; Customized according to customer requirements
Width	1000mm, 1219mm, 1240mm, 1500mm, 1800mm, 2000mm
Lead Time	7-15 working days after the receipt of 30% deposit
Price Terms	FOB, EXW, CIF, CFR
Packing	Bundled with strong steel strips or with waterproof packing materials Special packing please discuss with us

Mechanical Properties.

Grade	Yield Strength MPa no greater than	Tensile Strength MPa not less than	Elongation after breaking b(Lo=50mm, b=25mm) % not less than Nominal thickness mm
Grade	Yield Strength MPa no greater than	Tensile Strength MPa not less than		0.25-	0.40-	0.60-	1.0~	≥1.6
SPCC	—	270	30	32	34	36	37	38
SPCD	—	270	32	34	36	38	39	40
SPCE, SPCEN	210	270	34	36	38	40	41	42

Grade	Yield Strength MPa	tensile strength MPa not less than	Elongation after breaking b(l=80mm, b=20mm) % not less than Nominal thickness mm				r value is not less than	n value is not less than

				0.70-	1.0-	≥1.6
DC01(St12)	130~260	270	28	30	32	34	一	—
DC03(St13)	120~240	270	32	34	35	36	—	—
DC04(St14, St15)	120~210	270	36	38	39	40	1.5	0.18
DC05(BSC2)	110~190	260	38	39	40	41	1.8	0.20
DC06(St16,St14-T, BSC3)	100~180	250	39	40	41	42	2.0	0.22

Chemical Properties.

Grades	Chemical Composition%
Grades	C	Mn	P	S	Alt
SPCC	≤0.12	≤0.50	≤0035	≤0.025	≥0,020
SPCD	≤0.10	≤0.45	≤0.030	≤0.025	≥0.020
SPCE. SPCEN	≤008	U0.40	W0.025	≤0.020	≥0,020
Alt greater than or equal to 0.015 when C is less than or equal to 0.01 for all grades

Grade	Chemical Component ％
Grade	C	Mn	P	s	Alta	Tib
DC01(St12)	C0.10	≤0.50	≤0.035	≤0.025	≥0.020	—
DC03(St13)	≤0.08	≤0.45	≤0.030	≤0.025	≥0.020	—
DC04(St14,St 15)	≤0.08	≤0.40	≤0.025	≤0.020	≥0.020	—
DC05(BSC2)	≤0.008	≤0.30	≤0.020	≤0.020	≥0.015	≤0.20
DC06(St16,SH4-T,BSC3)	≤0.006	≤0.30	≤0.020	≤0.020	≥0.015	≤0.20
